Rubicon Closure

Just received from Vickie Sander of El Dorado County:

Sun, May 21 2017 2:35 PM

Condition exist on the Rubicon Trail that warrant closure.  The monitoring protocols have been met.  I am sending this to the ROC email list to get the information out as soon as possible and will post to the County website tomorrow.  Loon Lake to the Intertie is not effected by this closure.  With the upcoming holiday it is important that we get this information out.

If you have any questions, please contact me.
Thank you,
Vickie Sanders
Parks Manager
County of El Dorado
Chief Administrative Office
530-621-7538
FAX: 530-642-0301

My understanding is that this is a water running on the trail issue. With the warm temperatures, the excessive snow melt over runs the rolling dips and water bars. There are certain spots that get measured on a regular basis during the melt and it the water is deeper than allowed, motor vehicle traffic is temporarily suspended.

Hopefully these ‘trouble’ spots are documented and better features are placed on the trail to prevent future closures.

This only effects the Wentworth Springs section of the trail. I assume Airport Flat to the Ellis Creek (Loon Lake) intertie.

Vickie will email users when the conditions change and the trail is reopened.



Rubicon Ronin






New Spring Hangers

Back in 2009, when I bought my current CJ-7 trail rig, I noticed the U-bolt protection plates hanging down well below the axles. I thought I needed to get more clearance there before too long.

Well, seven years later, countless broken U-bolts later, I finally got rid of those low hanging hangers.

Thank you to Ruff Stuff for make a product I had been thinking about for years.

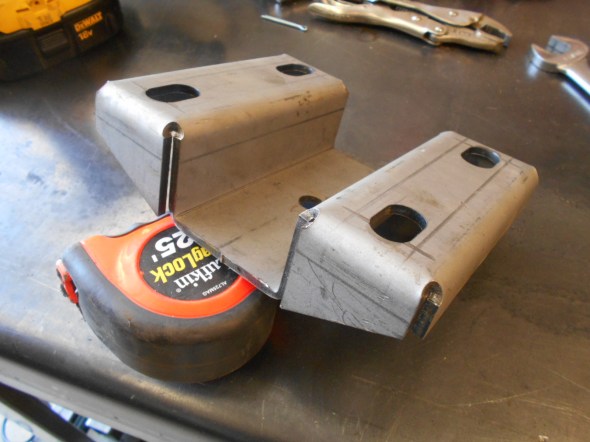

DSCN0731

Spring Under U-Bolt Plates http://www.ruffstuffspecialties.com/catalog/R2198.html

The clearance is clear. The wood represents the leaf spring (sprung under). The old on the right, the new on the left. (It’s only a 1/4″ piece of steel under the spring. The block is to get the ‘springs’ at the same height for demonstration purposes.)

DSCN0732

I have a problem that I can’t leave anything stock. I’m not always the one to come up with an idea but I can always figure out a way to make it better. So, in this case, I welded a thick washer in order to better protect the leaf spring bolt (actually the nut) from getting scraped or broken off.

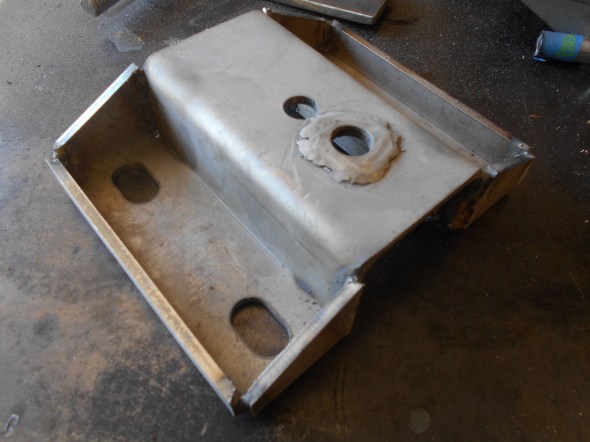

DSCN0735

Since I was relocating my anti-sway bar mounts, I had to fab up a new mount. This was an early version, the later version had two cross braces to prevent the bending of the plate. This involves a system to move the axle 1″ forward on the spring for better tire clearance with the back of the front fender.

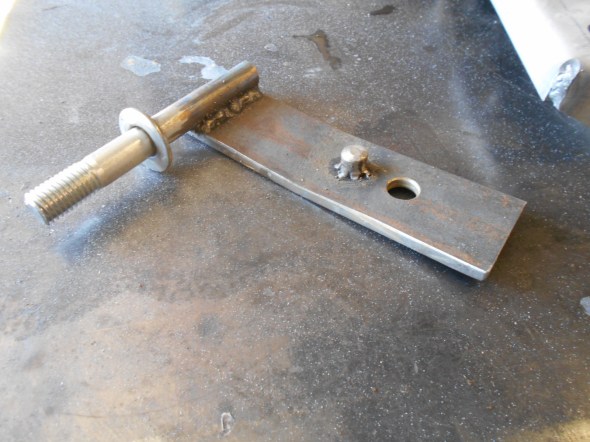

DSCN0734

I have these products on the rear axle of my CJ-7. I think I had to move the brake line mount because the U-bolts are spaced wider with this application. On the front, since this is made for 2 1/2″ spring, I had to install spaces to keep the springs aligned in the center of the bracket. The ‘seams’ of the new bracket were also welded for more strength.

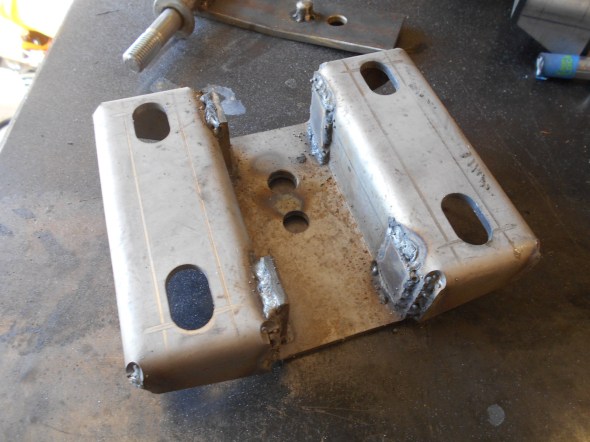

DSCN0736

On the front axle, the diff is off to the passenger side so I had to make room for the diff and cover. There was a little grinding of the front diff to get better clearance for the plate and the U-bolts.

DSCN0737

Once making the clearance, I had to make braces to make up for my cuts in the original product. The results of my welding shows I’m a little out of practice.

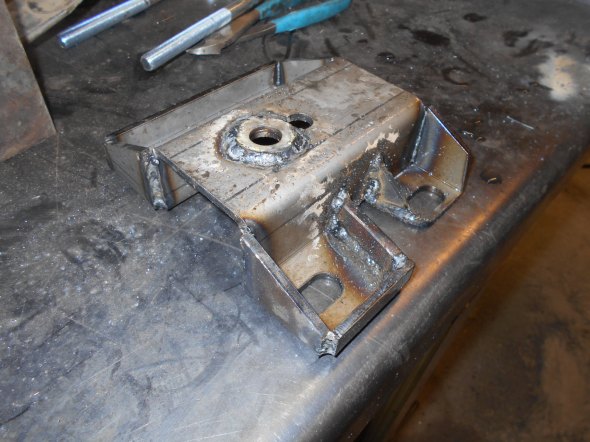

DSCN0740

Installed under the rig.

DSCN0744

You can sort-of see the extra braces on the anti-sway bar mounts.

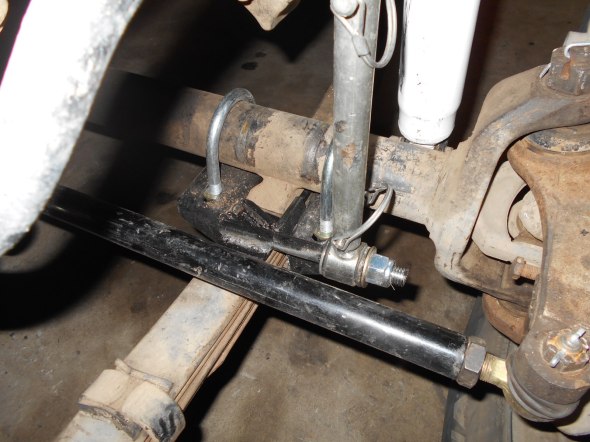

DSCN0745

The heavy duty steering and tie rod went in at the same time. (see previous ‘knuckle’ post)

DSCN0746

It has survived a mellow day of runs in the area. I’ll soon take it out for a true pre-season ruin. There’s still a ton of snow in the mountains so I have time to dial things in.



Rubicon Ronin
